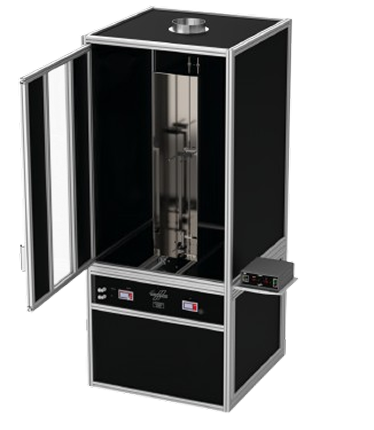

The Vertical Flame Tester is equipment that evaluates the combustion characteristics of a single conductor or insulated cable under specified flame conditions after fixing it in a vertical position.

It accurately measures the flame propagation characteristics of wires in the event of a fire, verifying the flame-retardant performance of products and confirming compliance with international safety standards.

This equipment is designed in accordance with the DIN EN 60332-1-1 and 60332-1-3 standards, ensuring the accuracy, reproducibility, and stability of tests.

Key Features

Precision Flame Control System Generates a flame of consistent size and temperature through a standardized burner, providing a stable testing environment.

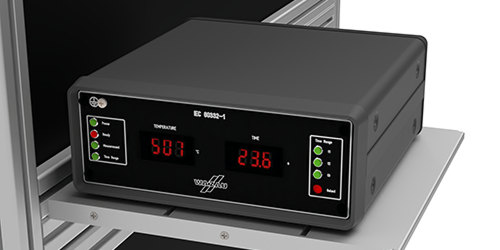

Automatic Timer and Control Device Automatically controls and records flame exposure time and test procedures, enhancing user convenience and precision.

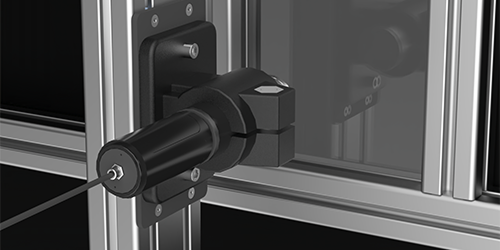

Sample Fixation Device and Combustion Length Measurement Various specifications of cables can be vertically fixed, and post-test char length measurement is enabled through a built-in ruler or digital measuring device, allowing precise result analysis.

Internal Exhaust System Effectively exhausts smoke generated after testing, maintaining a comfortable working environment.

User-Friendly Interface Enables intuitive control via touchscreen or PC-based software, simplifying test condition setup and result verification.

Applicable Standard	DIN EN 60332-1-1 / 60332-1-3
Test Specimen	Single insulated wire or cable
Flame Source	Standardized propane/methane burner
Burner Angle	Fixed at 45° (standard specification)
Combustion Time Setting	0 ~ 999 sec (digital timer control)
Char Length Measurement	Up to 600 mm via scale or digital measurement
Specimen Fixture	Vertical fixed-type clamp (depth adjustable)
Chamber Material	Interior stainless steel, heat-resistant structure
Smoke Exhaust System	Top-mounted exhaust duct and fan
Safety Devices	Automatic gas shut-off, overheat protection, ignition failure detection, etc.
Power Supply	230 VAC, 50/60 Hz
Dimensions	Approx. 1000 × 600 × 1800 mm (W × D × H)
Weight	Approx. 150 kg

Software Support Specifications

Automatic Calibration Supports automatic calibration before and after testing via software.

Data Recording Real-time electronic measurement data recording and storage.

Graph Analysis Visually analyzes test data and displays it in graph form.

Data Output Outputs data and reports in CSV, Excel, and PDF formats.

Remote Control Remote monitoring and control via Wi-Fi or Ethernet.

Notification Function Provides automatic alarms for out-of-specification conditions or excessive temperatures during testing.

Compatibility Compatible with Windows operating systems; supports USB/Ethernet connections.

The Vertical Flame Tester is equipment that evaluates the combustion characteristics of a single conductor or insulated cable under specified flame conditions after fixing it in a vertical position. It accurately measures the flame propagation characteristics of wires in the event of a fire, verifying the flame-retardant performance of products and confirming compliance with international safety standards. This equipment is designed in accordance with the DIN EN 60332-1-1 and 60332-1-3 standards, ensuring the accuracy, reproducibility, and stability of tests.

Key Features

Precision Flame Control System Generates a flame of consistent size and temperature through a standardized burner, providing a stable testing environment.

Automatic Timer and Control Device Automatically controls and records flame exposure time and test procedures, enhancing user convenience and precision.

Sample Fixation Device and Combustion Length Measurement Various specifications of cables can be vertically fixed, and post-test char length measurement is enabled through a built-in ruler or digital measuring device, allowing precise result analysis.

Internal Exhaust System Effectively exhausts smoke generated after testing, maintaining a comfortable working environment.

User-Friendly Interface Enables intuitive control via touchscreen or PC-based software, simplifying test condition setup and result verification.

Applicable Standard	DIN EN 60332-1-1 / 60332-1-3
Test Specimen	Single insulated wire or cable
Flame Source	Standardized propane/methane burner
Burner Angle	Fixed at 45° (standard specification)
Combustion Time Setting	0 ~ 999 sec (digital timer control)
Char Length Measurement	Up to 600 mm via scale or digital measurement
Specimen Fixture	Vertical fixed-type clamp (depth adjustable)
Chamber Material	Interior stainless steel, heat-resistant structure
Smoke Exhaust System	Top-mounted exhaust duct and fan
Safety Devices	Automatic gas shut-off, overheat protection, ignition failure detection, etc.
Power Supply	230 VAC, 50/60 Hz
Dimensions	Approx. 1000 × 600 × 1800 mm (W × D × H)
Weight	Approx. 150 kg

Software Support Specifications

- Automatic Calibration Supports automatic calibration before and after testing via software.

- Data Recording Real-time electronic measurement data recording and storage.

- Graph Analysis Visually analyzes test data and displays it in graph form.

- Data Output Outputs data and reports in CSV, Excel, and PDF formats.

- Remote Control Remote monitoring and control via Wi-Fi or Ethernet.

- Notification Function Provides automatic alarms for out-of-specification conditions or excessive temperatures during testing.

- Compatibility Compatible with Windows operating systems; supports USB/Ethernet connections.

Equipment Specifications
