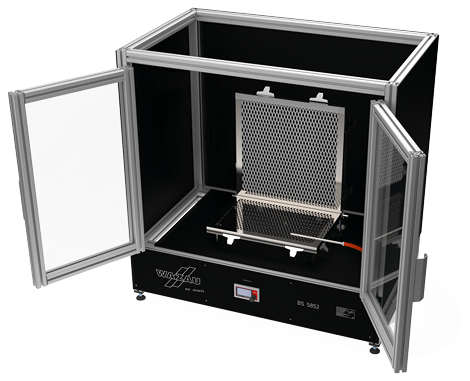

BS 5852 is a British fire safety testing standard primarily used to evaluate the flame resistance of furniture and interior products.

BS 5852 testing equipment evaluates the fire safety of these products by measuring how furniture and other products react in a fire environment, particularly by measuring characteristics such as flame propagation, smoke generation, and heat release.

The BS 5852 testing equipment provides various functions necessary for evaluating the fire resistance of furniture and interior decoration products by measuring flame spread rate, smoke density, temperature changes, and more.

This test is particularly important for evaluating the fire hazards of furniture fabrics, cushions, and filling materials.

Key Features

Flame Emitter Conducts experiments using a standardized flame emitter. This emitter applies a flame of consistent size and intensity to the test sample.

Temperature and Smoke Density Meter Measures the amount of heat and smoke generated during fire testing using a smoke density meter and temperature sensors.

Automated Testing System Test setup and data recording are automated, and once the user configures the test procedure, the system automatically conducts the test and records data.

Safety Features Includes a flame detection system and temperature detection system, which can automatically issue warnings and terminate the test in the event of a fire during testing.

Test Method	Evaluation of fire resistance performance of furniture and interior products including flame propagation, smoke density, and heat release
Flame Burner	Standardized flame burner with adjustable flame intensity and size
Test Duration	Typically 15 min ~ 30 min (configurable)
Temperature Range	0°C ~ 800°C (measurable temperature range during testing)
Smoke Density Measurement	Smoke density measurement using optical sensor
Gas Analysis	CO and CO₂ concentration measurement available
Power Consumption	Approx. 3 kW ~ 5 kW
Safety Devices	Flame detection system, overheat protection system, etc.
Software Support	Automated functions including test configuration, data logging, and report generation

Software Support Specifications

Test Automation Automation of test setup, start, termination, and control.

Remote Control Remote control and monitoring of testing equipment.

Data Collection and Analysis Test results are automatically saved in CSV, Excel, and PDF formats, with subsequent report generation. Provides statistical analysis including average values, maximum values, and more.

Real-Time Monitoring Real-time verification of HRR, smoke density, oxygen consumption rate, and more. Real-time measurement of HRR (Heat Release Rate), smoke density, and gas concentration, displayed in graph form.

Error Detection and Warning Provides warning messages when abnormalities occur during testing.

BS 5852 is a British fire safety testing standard primarily used to evaluate the flame resistance of furniture and interior products. BS 5852 testing equipment evaluates the fire safety of these products by measuring how furniture and other products react in a fire environment, particularly by measuring characteristics such as flame propagation, smoke generation, and heat release. The BS 5852 testing equipment provides various functions necessary for evaluating the fire resistance of furniture and interior decoration products by measuring flame spread rate, smoke density, temperature changes, and more. This test is particularly important for evaluating the fire hazards of furniture fabrics, cushions, and filling materials.

Key Features

Flame Emitter Conducts experiments using a standardized flame emitter. This emitter applies a flame of consistent size and intensity to the test sample.

Temperature and Smoke Density Meter Measures the amount of heat and smoke generated during fire testing using a smoke density meter and temperature sensors.

Automated Testing System Test setup and data recording are automated, and once the user configures the test procedure, the system automatically conducts the test and records data.

Safety Features Includes a flame detection system and temperature detection system, which can automatically issue warnings and terminate the test in the event of a fire during testing.

Test Method	Evaluation of fire resistance performance of furniture and interior products including flame propagation, smoke density, and heat release
Flame Burner	Standardized flame burner with adjustable flame intensity and size
Test Duration	Typically 15 min ~ 30 min (configurable)
Temperature Range	0°C ~ 800°C (measurable temperature range during testing)
Smoke Density Measurement	Smoke density measurement using optical sensor
Gas Analysis	CO and CO₂ concentration measurement available
Power Consumption	Approx. 3 kW ~ 5 kW
Safety Devices	Flame detection system, overheat protection system, etc.
Software Support	Automated functions including test configuration, data logging, and report generation

Software Support Specifications

- Test Automation Automation of test setup, start, termination, and control.

- Remote Control Remote control and monitoring of testing equipment.

- Data Collection and Analysis Test results are automatically saved in CSV, Excel, and PDF formats, with subsequent report generation. Provides statistical analysis including average values, maximum values, and more.

- Real-Time Monitoring Real-time verification of HRR, smoke density, oxygen consumption rate, and more. Real-time measurement of HRR (Heat Release Rate), smoke density, and gas concentration, displayed in graph form.

- Error Detection and Warning Provides warning messages when abnormalities occur during testing.

Equipment Specifications
