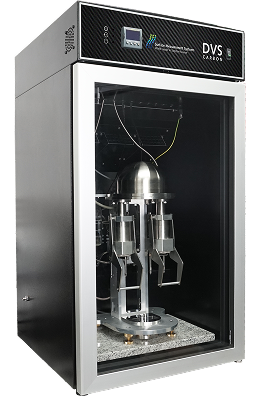

What is DVS Carbon?

The latest addition to the DVS product family, the DVS Carbon is the first gravimetric sorption analyzer specifically built for advanced Carbon Capture, Utilization and Storage (CCUS) applications.

In most gas-phase carbon capture applications, CO₂ often competes with other chemical species present at the sorbent site — including water vapor. The new DVS Carbon enables measurement of CO₂ uptake under real-world conditions by controlling both temperature and humidity across a broad range of CO₂ concentrations.

Using the patented Surface Measurement Systems UltraBalance to measure mass changes from sample sorption and desorption in real time, the DVS Carbon allows for the evaluation of complex carbon capture conditions across a wide variety of materials. The system can also be configured to enable additional functions as needed.

DVS Carbon Benefits

• The only dedicated system for measuring carbon capture characteristics under real-world conditions
• Equipped with a patented, redesigned Speed of Sound Sensor for accurate real-time precision measurement
• Open stainless-steel stand design that minimizes static electricity generation while enabling easy access to the sample pan
• Single-zone temperature chamber delivering uniform accuracy across a wide 5–85 °C operating range
• Built-in sample heater providing localized temperature control up to 300 °C for sample activation, drying, and more
• Heated humidity delivery system with fully automated temperature control, enabling long-duration humidity regulation up to 98% RH at 60 °C and up to 85% RH at 85 °C
• Next-generation control and analysis software enabling state-of-the-art experimental design and data evaluation
• Optional accessories supporting Raman spectroscopy, Near-Infrared (NIR) spectroscopy, and video imaging

Applications

Carbon Capture, Utilization and Storage (CCUS) — Applied to Direct Air Capture (DAC) and post-combustion capture technologies Sorbent Performance Evaluation — Analyzes CO₂ and moisture sorption characteristics of diverse porous materials, including amines, zeolites, activated carbons, and Metal-Organic Frameworks (MOFs) Material Environmental Resistance Evaluation — Assesses the stability of polymers, pharmaceuticals, food, and other materials under varying temperature and humidity conditions, supporting product development and quality control

Key Features

• Individual and Simultaneous Sorption/Desorption Analysis of CO₂ and H₂O — Replicates real-world environmental conditions to evaluate the sorption and desorption characteristics of CO₂ and moisture across a range of concentrations
• Wide-Range Temperature and Humidity Control — Temperature range of 5 °C to 85 °C and relative humidity range of 0% to 98%, enabling experiments under diverse conditions
• Precise Mass Measurement — The patented UltraBalance system detects minute sample mass changes in real time, enabling accurate analysis of sorption characteristics
• Competitive Sorption Analysis — Analyzes competitive sorption phenomena between CO₂ and moisture, enabling evaluation of sorbent selectivity and efficiency

01

A First-of-Its-Kind Innovation

The DVS Carbon is the first gravimetric sorption analyzer specifically designed for advanced carbon capture conditions in this rapidly growing research field.

02

Independent Multi-Component Control

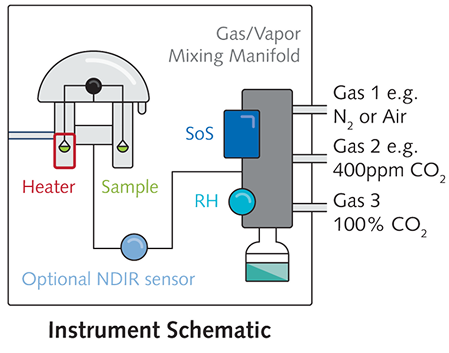

Through a precisely calibrated mixing system, the DVS Carbon allows independent control of CO₂ and water concentrations. By precisely regulating variations in both concentration and temperature, it enables the design of complex sorption experimental programs.

03

CO₂ and H₂O Isotherm Analysis with Kinetic Performance

Measures CO₂ and water isotherms of samples under real-world conditions. The sorption kinetics at each step can be automatically verified through the dedicated control and analysis software included with the system.

04

Experiments Across Multiple Concentration and Temperature Ranges

CO₂ concentration control from high levels (%) down to the ppm range makes the DVS Carbon suitable for DAC, PCC, and other CCUS applications.

• DAC (Direct Air Capture)
• PCC (Post-Combustion Capture)
• CCUS (Carbon Capture, Utilization and Storage)

05

In-Situ Activation and Regeneration

When the instrument's capabilities are extended with the pre-heater, samples can be locally heated up to 300 °C under inert or process gas, enabling direct determination of drying activation or decomposition reaction kinetics.
