Applications

Battery Materials Analysis — Measures surface energy and diffusion properties of electrode materials at high temperatures, contributing to performance enhancement Catalyst and Sorbent Research — Analyzes sorption strength and surface reactivity to enable efficient catalyst design Polymer and Composite Material Characterization — Evaluates adhesion and miscibility to understand interactions between materials Carbon-Based Materials Analysis — Precisely characterizes the surface properties of graphene, carbon nanotubes, and similar materials for advanced electronic materials development Pharmaceuticals and Active Pharmaceutical Ingredients (APIs) — Analyzes crystallinity, surface energy, and wettability to evaluate formulation stability and blending compatibility Fibers and Textiles — Analyzes surface modification status and energy changes before and after treatment, supporting evaluation of dyeability and functional treatment efficiency

Key Features

• High-Temperature Analysis Capability — Analyzes sample surface properties and diffusion coefficients across a temperature range of 30 °C to 500 °C, providing an advantage for material characterization under high-temperature environments
• In-Situ Sample Pre-Treatment — Modular accessories enable direct sample pre-treatment within the instrument, allowing analysis under various conditions while maintaining sample integrity
• Versatile Probe Gas Selection — Precisely measures diverse material properties — including surface energy, acid-base interactions, and sorption isotherms — using up to 12 different probe gases
• Fully Automated Operation — Dedicated software enables experimental automation, with a user-friendly interface that simplifies experimental setup and data analysis
• Optional Humidity Control — An optional humidity control feature can be added, enabling analysis of sample property changes under diverse humidity conditions

01

High-Temperature Capability

With a temperature range of 30 °C to 500 °C, the iGC-SEA Nova's high-temperature column oven enables laboratories to perform sample preparation, surface energy analysis, and determination of diffusion coefficients — such as for carbon materials — at application-relevant temperatures.

02

Rapid Surface Characterization of Highly Active Substrates

The iGC-SEA Nova efficiently characterizes highly active substrates through its rapid surface analysis capabilities.

03

Unmatched Accuracy and Reliability

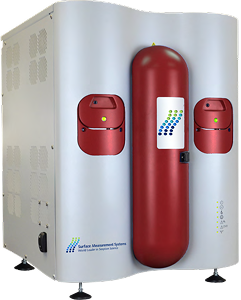

The iGC-SEA Nova from Surface Measurement Systems combines Inverse Gas Chromatography principles with innovative instrument features to deliver outstanding accuracy and exceptional reproducibility.

04

Fully Automated Operation

Through the innovative design of the Inverse Gas Chromatography Surface Energy Analyzer Nova and its dedicated control software, experiments can be performed with complete automation — dramatically reducing user hands-on time.

05

Experimental Flexibility with Up to 12 Probe Gases

Using up to 12 different probe gases, researchers can conduct diverse experiments and obtain a broad range of Inverse Gas Chromatography data.

06

In-Situ Sample Pre-Treatment

Modular accessories enable direct sample pre-treatment within the instrument, allowing researchers to precisely track how solid surface properties change under various temperatures and conditions.
