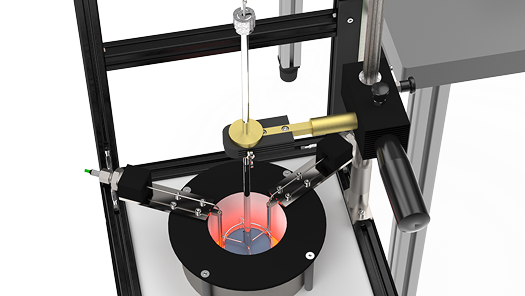

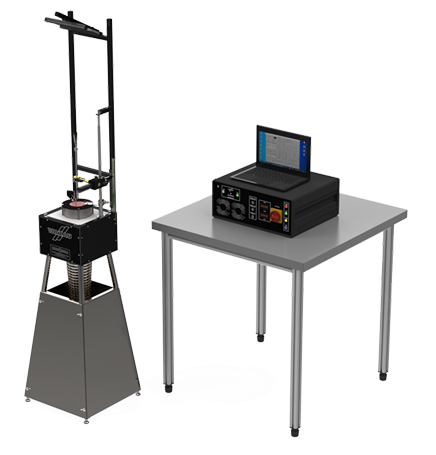

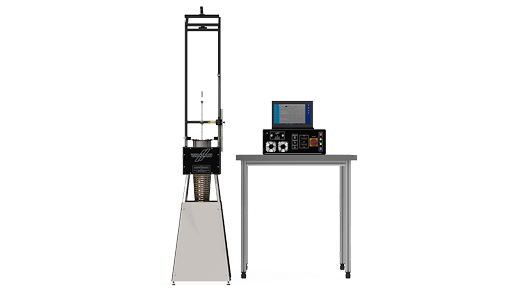

The DIN EN ISO 1182 Non-Combustibility Tester is equipment that evaluates the non-flammability and non-combustibility properties of materials.

This tester is used to evaluate how well a material resists flames and whether it continues without being combusted by the flames. In particular, it can test the non-flammability performance of building materials, plastics, clothing, fire-resistant materials, and more.

The DIN EN ISO 1182 tester analyzes the response of materials to flames or high temperatures in order to accurately measure their non-combustibility properties.

It is primarily applied to building materials and products where fire resistance is important. This test primarily evaluates the non-flammability performance of a material by measuring the combustion starting temperature, combustion duration, and residual substances after combustion when the material is exposed to flames.

Key Features

Precise Temperature Control The testing equipment provides consistent temperature control at high temperatures, enabling accurate control of flame exposure.

Material Non-Combustibility Evaluation Evaluates non-flammability by measuring how long a material withstands combustion after being exposed to flames, as well as the amount of residual material.

Automated Test Progression Supports automated test progression with test conditions and status configured through software.

Result Recording Test results are automatically recorded and can be output in report format.

Testing of Various Materials Testing is possible on various materials, including building materials, plastics, clothing, and firefighter protective suits.

Test Specimen	Construction materials, plastics, clothing, fire-resistant materials, etc.
Test Standard	DIN EN ISO 1182
Sample Size	150 mm × 150 mm (standard size; adjustable)
Test Temperature	Up to 1200°C (flame temperature settable)
Test Duration	10 min ~ 60 min (adjustable depending on material)
Temperature Accuracy	±1°C accuracy
Temperature Control	Precision temperature control system (maintains and adjusts temperature during testing)
Flame Emission System	Flame emission device delivering uniform, consistent flame to the specimen
Test Execution	Automated test execution via software (configuration and test management)
Result Recording	Automatic result logging with export to PDF or Excel formats
Result Analysis	Analysis of ignition time, combustion duration, and residual mass
Safety Devices	Overheat protection system, emergency stop button, fire safety device
Power Supply	220V / 50Hz (configurable to local voltage standards)
Software Compatibility	Compatible with Windows OS; supports remote control and data logging
Supported Specimen Types	Heat-sensitive materials, firefighting protective clothing, construction materials, and more
Post-Test Analysis Features	Non-combustibility assessment, char/damage evaluation, and heat resistance analysis
Software Features	Test configuration, result logging and analysis, automated test execution support

Software Support Specifications

Automated Test Control Test settings configurable based on temperature, time, and material type.

Data Recording and Analysis Automatically records all test data, including temperature, time, and material reactions.

Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

Automation Automated test progression, temperature and time control, with warning and notification functions.

Compatibility Supports integration with various equipment; remote updates available.

Security User login and role-based access management.

The DIN EN ISO 1182 Non-Combustibility Tester is equipment that evaluates the non-flammability and non-combustibility properties of materials. This tester is used to evaluate how well a material resists flames and whether it continues without being combusted by the flames. In particular, it can test the non-flammability performance of building materials, plastics, clothing, fire-resistant materials, and more.

The DIN EN ISO 1182 tester analyzes the response of materials to flames or high temperatures in order to accurately measure their non-combustibility properties. It is primarily applied to building materials and products where fire resistance is important. This test primarily evaluates the non-flammability performance of a material by measuring the combustion starting temperature, combustion duration, and residual substances after combustion when the material is exposed to flames.

Key Features

Precise Temperature Control The testing equipment provides consistent temperature control at high temperatures, enabling accurate control of flame exposure.

Material Non-Combustibility Evaluation Evaluates non-flammability by measuring how long a material withstands combustion after being exposed to flames, as well as the amount of residual material.

Automated Test Progression Supports automated test progression with test conditions and status configured through software.

Result Recording Test results are automatically recorded and can be output in report format.

Testing of Various Materials Testing is possible on various materials, including building materials, plastics, clothing, and firefighter protective suits.

Test Specimen	Construction materials, plastics, clothing, fire-resistant materials, etc.
Test Standard	DIN EN ISO 1182
Sample Size	150 mm × 150 mm (standard size; adjustable)
Test Temperature	Up to 1200°C (flame temperature settable)
Test Duration	10 min ~ 60 min (adjustable depending on material)
Temperature Accuracy	±1°C accuracy
Temperature Control	Precision temperature control system (maintains and adjusts temperature during testing)
Flame Emission System	Flame emission device delivering uniform, consistent flame to the specimen
Test Execution	Automated test execution via software (configuration and test management)
Result Recording	Automatic result logging with export to PDF or Excel formats
Result Analysis	Analysis of ignition time, combustion duration, and residual mass
Safety Devices	Overheat protection system, emergency stop button, fire safety device
Power Supply	220V / 50Hz (configurable to local voltage standards)
Software Compatibility	Compatible with Windows OS; supports remote control and data logging
Supported Specimen Types	Heat-sensitive materials, firefighting protective clothing, construction materials, and more
Post-Test Analysis Features	Non-combustibility assessment, char/damage evaluation, and heat resistance analysis
Software Features	Test configuration, result logging and analysis, automated test execution support

Software Support Specifications

- Automated Test Control Test settings configurable based on temperature, time, and material type.

- Data Recording and Analysis Automatically records all test data, including temperature, time, and material reactions.

- Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

- Automation Automated test progression, temperature and time control, with warning and notification functions.

- Compatibility Supports integration with various equipment; remote updates available.

- Security User login and role-based access management.
