S&T

Key Features

Precise Temperature Control Tests are conducted by setting the accurate temperature of molten metal, ensuring consistent test conditions.

Material Reaction Measurement Precisely analyzes material changes or non-combustion visually or digitally.

Automated Test Progression Enables accurate test progression by automatically controlling temperature, the falling speed of molten metal droplets, droplet size, and more.

Result Recording and Analysis Test results are automatically recorded, and reports are generated in PDF or Excel format.

Safety Features Equipped with functions that ensure safety during test progression, including overheat protection and emergency stop devices.

Test Specimen	Metal materials, industrial protective equipment, clothing, and other heat-sensitive materials

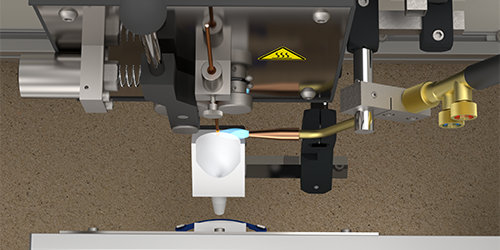

Test Method	Evaluation of contact heat resistance by dripping molten metal onto the specimen
Molten Metal Type	Tin, lead, copper, aluminum, and other metals selectable
Molten Metal Temperature	Settable in the range of 500°C ~ 1500°C
Test Duration	5 sec ~ 60 sec (adjustable depending on test requirements)
Molten Metal Droplet Size	1mm ~ 10mm (droplet size adjustable)
Specimen Size	Testable up to 200mm × 200mm in size
Material Response Measurement	Visual or digital measurement of deformation, non-combustion, and damage to the specimen
Temperature Control	Precision temperature control system (±1°C accuracy)
Test Automation	Automated test execution with automatic adjustment of molten metal droplet speed and temperature
Post-Test Result Analysis	Automatic logging of material response and result analysis
Post-Test Report Generation	Automatic report generation (PDF, Excel format supported)
Safety Devices	Overheat protection system, emergency stop device, fire safety device
Power Supply	220V / 50Hz, 110V / 60Hz (configurable to local voltage standards)
Software	Automated test software supporting test configuration, result logging, and data analysis

Software Support Specifications

Test Setup Test settings configurable based on temperature, time, metal type, and material type.

Data Recording and Analysis Real-time recording of data including temperature, time, and material reactions.

Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

Automation Automated test progression, temperature and time control, with warning and notification functions.

Compatibility Supports integration with various equipment; remote updates available.

Security Maintains security through user authentication and role-based access control.

Key Features

Precise Temperature Control Tests are conducted by setting the accurate temperature of molten metal, ensuring consistent test conditions.

Material Reaction Measurement Precisely analyzes material changes or non-combustion visually or digitally.

Automated Test Progression Enables accurate test progression by automatically controlling temperature, the falling speed of molten metal droplets, droplet size, and more.

Result Recording and Analysis Test results are automatically recorded, and reports are generated in PDF or Excel format.

Safety Features Equipped with functions that ensure safety during test progression, including overheat protection and emergency stop devices.

Test Specimen	Metal materials, industrial protective equipment, clothing, and other heat-sensitive materials
Test Method	Evaluation of contact heat resistance by dripping molten metal onto the specimen
Molten Metal Type	Tin, lead, copper, aluminum, and other metals selectable
Molten Metal Temperature	Settable in the range of 500°C ~ 1500°C
Test Duration	5 sec ~ 60 sec (adjustable depending on test requirements)
Molten Metal Droplet Size	1mm ~ 10mm (droplet size adjustable)
Specimen Size	Testable up to 200mm × 200mm in size
Material Response Measurement	Visual or digital measurement of deformation, non-combustion, and damage to the specimen
Temperature Control	Precision temperature control system (±1°C accuracy)
Test Automation	Automated test execution with automatic adjustment of molten metal droplet speed and temperature
Post-Test Result Analysis	Automatic logging of material response and result analysis
Post-Test Report Generation	Automatic report generation (PDF, Excel format supported)
Safety Devices	Overheat protection system, emergency stop device, fire safety device
Power Supply	220V / 50Hz, 110V / 60Hz (configurable to local voltage standards)
Software	Automated test software supporting test configuration, result logging, and data analysis

Software Support Specifications

- Test Setup Test settings configurable based on temperature, time, metal type, and material type.

- Data Recording and Analysis Real-time recording of data including temperature, time, and material reactions.

- Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

- Automation Automated test progression, temperature and time control, with warning and notification functions.

- Compatibility Supports integration with various equipment; remote updates available.

- Security Maintains security through user authentication and role-based access control.

Equipment Specifications
