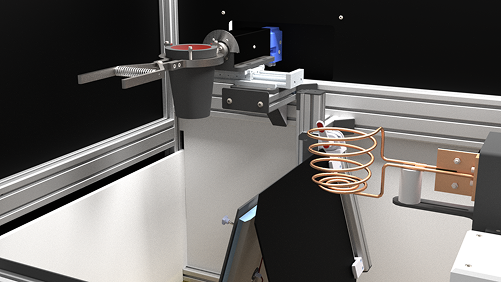

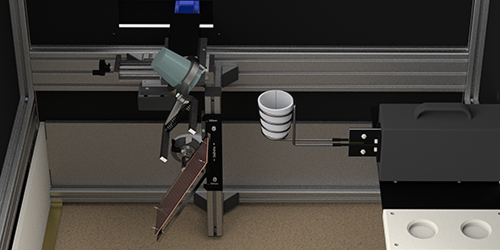

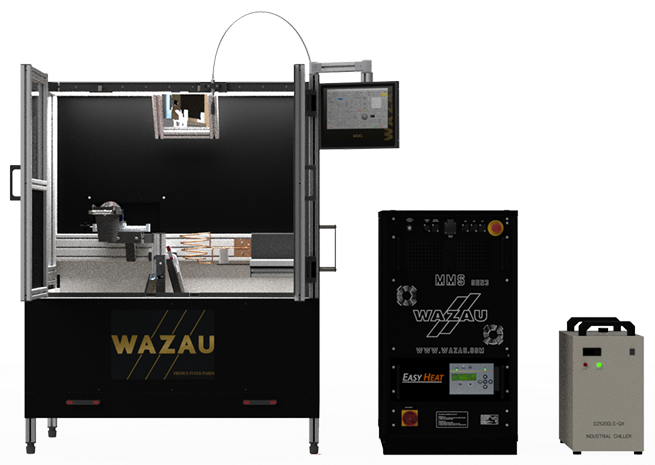

The MMS - ISO 9185 | ASTM F955 Large Molten Metal Droplet Resistance Tester is an advanced testing device that evaluates heat resistance and tolerance against molten metal.

This equipment is used to accurately measure the heat resistance of various industrial materials and protective equipment by evaluating the effects of large molten metal droplets on materials according to the ISO 9185 and ASTM F955 standards.

The primary purpose of this tester is to evaluate the durability and heat resistance of materials when molten metal droplets fall onto them.

In accordance with the ISO 9185 and ASTM F955 standards, it measures resistance and heat resistance against molten metal to determine how effectively the material can provide protection in high-temperature environments.

Key Features

Large Molten Metal Droplets Tests the durability of materials using not only small metal droplets but also large volumes of molten metal droplets.

High-Temperature Control Enables precise test progression by controlling the temperature of molten metal through accurate temperature control.

Testing of Various Metals Various metals, including lead, tin, copper, and aluminum, can be used as molten metal.

Automated Test Progression Test progression is set up automatically, and data recording and analysis are automated, saving time and labor.

Safety Features Equipped with functions that ensure safety during test progression, including overheat protection and emergency stop devices.

Test Specimen	Industrial materials, protective equipment, clothing, and other heat-sensitive materials
Test Standard	ISO 9185, ASTM F955 compliant test equipment
Molten Metal Type	Tin, lead, copper, aluminum, and other metals selectable
Molten Metal Temperature	Settable in the range of 500°C ~ 1500°C
Test Duration	5 sec ~ 60 sec (adjustable depending on test requirements)
Molten Metal Droplet Size	1mm ~ 10mm (droplet size adjustable)
Specimen Size	Testable up to 200mm × 200mm in size
Test Specimen Material	Heat-sensitive materials, industrial protective equipment, clothing, etc.
Temperature Control	Precision temperature control system (±1°C accuracy)
Test Automation	Automated test execution with automatic adjustment of molten metal droplet speed and temperature
Material Response Measurement	Visual or digital measurement of deformation, non-combustion, and damage to the specimen
Post-Test Result Storage	Automatic report generation (PDF, Excel format supported)
Safety Devices	Overheat protection system, emergency stop device, fire safety device
Power Supply	220V / 50Hz, 110V / 60Hz (configurable to local voltage standards)
Automation & Remote Control	Remote control and automated test configuration capabilities
Data Visualization & Analysis	Chart and graph-based result visualization with real-time analysis
Software Compatibility	Compatible with Windows operating system (Windows 7/10/11 and above)

Software Support Specifications

Test Setup Test settings configurable based on temperature, time, metal type, and material type.

Data Recording and Analysis Real-time recording of data including temperature, time, and material reactions.

Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

Automation Automated test progression, temperature and time control, with warning and notification functions.

Compatibility Supports integration with various equipment; remote updates available.

Security Maintains security through user authentication and role-based access control.

The MMS - ISO 9185 | ASTM F955 Large Molten Metal Droplet Resistance Tester is an advanced testing device that evaluates heat resistance and tolerance against molten metal. This equipment is used to accurately measure the heat resistance of various industrial materials and protective equipment by evaluating the effects of large molten metal droplets on materials according to the ISO 9185 and ASTM F955 standards. The primary purpose of this tester is to evaluate the durability and heat resistance of materials when molten metal droplets fall onto them. In accordance with the ISO 9185 and ASTM F955 standards, it measures resistance and heat resistance against molten metal to determine how effectively the material can provide protection in high-temperature environments.

Key Features

Large Molten Metal Droplets Tests the durability of materials using not only small metal droplets but also large volumes of molten metal droplets.

High-Temperature Control Enables precise test progression by controlling the temperature of molten metal through accurate temperature control.

Testing of Various Metals Various metals, including lead, tin, copper, and aluminum, can be used as molten metal.

Automated Test Progression Test progression is set up automatically, and data recording and analysis are automated, saving time and labor.

Safety Features Equipped with functions that ensure safety during test progression, including overheat protection and emergency stop devices.

Test Specimen	Industrial materials, protective equipment, clothing, and other heat-sensitive materials
Test Standard	ISO 9185, ASTM F955 compliant test equipment
Molten Metal Type	Tin, lead, copper, aluminum, and other metals selectable
Molten Metal Temperature	Settable in the range of 500°C ~ 1500°C
Test Duration	5 sec ~ 60 sec (adjustable depending on test requirements)
Molten Metal Droplet Size	1mm ~ 10mm (droplet size adjustable)
Specimen Size	Testable up to 200mm × 200mm in size
Test Specimen Material	Heat-sensitive materials, industrial protective equipment, clothing, etc.
Temperature Control	Precision temperature control system (±1°C accuracy)
Test Automation	Automated test execution with automatic adjustment of molten metal droplet speed and temperature
Material Response Measurement	Visual or digital measurement of deformation, non-combustion, and damage to the specimen
Post-Test Result Storage	Automatic report generation (PDF, Excel format supported)
Safety Devices	Overheat protection system, emergency stop device, fire safety device
Power Supply	220V / 50Hz, 110V / 60Hz (configurable to local voltage standards)
Automation & Remote Control	Remote control and automated test configuration capabilities
Data Visualization & Analysis	Chart and graph-based result visualization with real-time analysis
Software Compatibility	Compatible with Windows operating system (Windows 7/10/11 and above)

Software Support Specifications

- Test Setup Test settings configurable based on temperature, time, metal type, and material type.

- Data Recording and Analysis Real-time recording of data including temperature, time, and material reactions.

- Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

- Automation Automated test progression, temperature and time control, with warning and notification functions.

- Compatibility Supports integration with various equipment; remote updates available.

- Security Maintains security through user authentication and role-based access control.

Equipment Specifications
