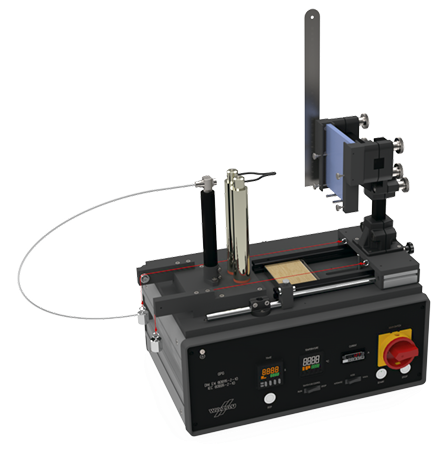

The GPD DIN EN IEC 60695-2-10 Glow Wire Ignition Tester is important equipment for evaluating the heat resistance and fire resistance of electrical products and electronic devices.

This tester examines the fire safety of products through glow wire ignition tests based on the IEC 60695-2-10 standard.

The glow wire ignition test evaluates how well a product can withstand heat-induced ignition and plays a particularly important role in minimizing the fire risk of electrical equipment and mechanical components.

The Glow Wire Ignition Tester is very important equipment in electrical fire testing, using a high-temperature glow wire to evaluate the potential for fire occurrence in electronic devices and components.

The glow wire is exposed to the test object for a certain period of time, evaluating the equipment's fire resistance and ignition resistance. This test is used to verify whether electrical components can cause ignition due to heat.

Key Features

Glow Wire Ignition Evaluates the fire resistance of electrical components or equipment using a glow wire at a specified temperature.

High-Temperature Exposure Tests ignition potential by heating the glow wire from 700°C to 1000°C.

Precise Temperature Control Maintains an accurate testing environment by precisely controlling the temperature of the glow wire.

Automated Data Recording Data generated during testing is automatically recorded, and results can be output in PDF or Excel format.

Fire Resistance Testing Provides important data for enhancing safety by evaluating the fire resistance of electronic devices and electrical components.

Test Standard	DIN EN IEC 60695-2-10
Test Sample Size	Product components and electronic device samples (prepared to standard dimensions and specifications)
Glow Wire Temperature	700°C ~ 1000°C (conducted under high-temperature conditions)
Test Duration	30 sec ~ 120 sec (adjustable depending on test specimen)
Combustion Verification	Verification of ignition onset and sustained combustion
Result Recording	Automatic logging in PDF and Excel formats
Temperature Accuracy	±5°C accuracy
Software Compatibility	Compatible with Windows OS; supports remote control and data logging

Software Support Specifications

Automated Test Control Test settings configurable based on temperature, time, and material type.

Data Recording and Analysis Automatically records all test data, including temperature, time, and material reactions.

Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

Automated Test Control Automated test progression, temperature and time control, with warning and notification functions.

Compatibility Supports integration with various equipment; remote updates available.

Security User login and role-based access management.

The GPD DIN EN IEC 60695-2-10 Glow Wire Ignition Tester is important equipment for evaluating the heat resistance and fire resistance of electrical products and electronic devices. This tester examines the fire safety of products through glow wire ignition tests based on the IEC 60695-2-10 standard. The glow wire ignition test evaluates how well a product can withstand heat-induced ignition and plays a particularly important role in minimizing the fire risk of electrical equipment and mechanical components. The Glow Wire Ignition Tester is very important equipment in electrical fire testing, using a high-temperature glow wire to evaluate the potential for fire occurrence in electronic devices and components. The glow wire is exposed to the test object for a certain period of time, evaluating the equipment's fire resistance and ignition resistance. This test is used to verify whether electrical components can cause ignition due to heat.

Key Features

Glow Wire Ignition Evaluates the fire resistance of electrical components or equipment using a glow wire at a specified temperature.

High-Temperature Exposure Tests ignition potential by heating the glow wire from 700°C to 1000°C.

Precise Temperature Control Maintains an accurate testing environment by precisely controlling the temperature of the glow wire.

Automated Data Recording Data generated during testing is automatically recorded, and results can be output in PDF or Excel format.

Fire Resistance Testing Provides important data for enhancing safety by evaluating the fire resistance of electronic devices and electrical components.

Test Standard	DIN EN IEC 60695-2-10
Test Sample Size	Product components and electronic device samples (prepared to standard dimensions and specifications)
Glow Wire Temperature	700°C ~ 1000°C (conducted under high-temperature conditions)
Test Duration	30 sec ~ 120 sec (adjustable depending on test specimen)
Combustion Verification	Verification of ignition onset and sustained combustion
Result Recording	Automatic logging in PDF and Excel formats
Temperature Accuracy	±5°C accuracy
Software Compatibility	Compatible with Windows OS; supports remote control and data logging

Software Support Specifications

- Automated Test Control Test settings configurable based on temperature, time, and material type.

- Data Recording and Analysis Automatically records all test data, including temperature, time, and material reactions.

- Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

- Automated Test Control Automated test progression, temperature and time control, with warning and notification functions.

- Compatibility Supports integration with various equipment; remote updates available.

- Security User login and role-based access management.

Equipment Specifications
