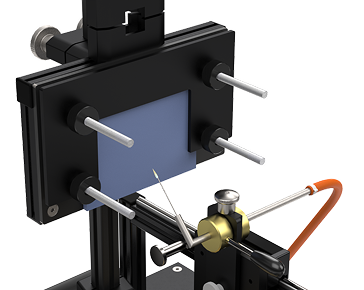

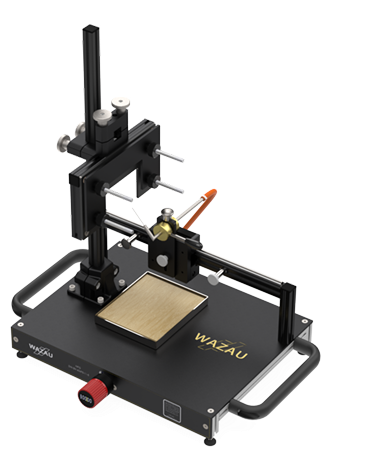

The Needle Flame Testing Device NPG DIN EN 60695-11-5 is testing equipment used to evaluate the fire safety of electrical and electronic equipment, components, and materials. This test plays a particularly important role in evaluating ignition and combustion propagation when a flame contacts a product.

This equipment is designed in accordance with the DIN EN 60695-11-5 standard to test the fire resistance of products.

The Needle Flame Testing Device evaluates how safe a product is when exposed to flames by exposing the test sample to a thin needle-shaped flame for a specified period of time.

This test is primarily used to evaluate the fire resistance of electronic products such as electrical devices, wiring materials, and plastic components. As an important method for verifying flame-induced ignition and combustion propagation, it enables preemptive evaluation of product fire risks.

Key Features

Flame Shape Uses a needle flame to provide a very narrow and concentrated heat source. This enables accurate testing of the ignition potential of sensitive materials.

Fixed Duration Tests ignition resistance by bringing the needle-shaped flame into contact with the sample for 2 seconds.

Automatic Result Recording Data generated during testing is automatically recorded and can be generated as a report.

Fire Safety Evaluation Evaluates product safety by measuring how quickly ignition occurs when electrical components and materials are exposed to flames.

Ease of Use Users can conduct stable and reliable tests through automatic temperature control and a precision control system.

Test Standard	DIN EN 60695-11-5
Test Sample Size	Target product samples (prepared to specified dimensions and specifications)
Needle Flame Temperature	1000°C ~ 1300°C (flame temperature)
Test Duration	2 sec (flame contact duration)
Specimen Fixation	The specimen is secured and the flame is applied precisely to the designated contact point
Ignition Time	30 sec or less (sustained ignition duration)
Result Recording	Automatic logging in PDF and Excel formats
Temperature Accuracy	±5°C accuracy
Software Compatibility	Compatible with Windows OS; supports remote control and data logging

Software Support Specifications

Automated Test Control Test settings configurable based on temperature, time, and material type.

Data Recording and Analysis Automatically records all test data, including temperature, time, and material reactions.

Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

Automation Automated test progression, temperature and time control, with warning and notification functions.

Compatibility Supports integration with various equipment; remote updates available.

Security User login and role-based access management.

The Needle Flame Testing Device NPG DIN EN 60695-11-5 is testing equipment used to evaluate the fire safety of electrical and electronic equipment, components, and materials. This test plays a particularly important role in evaluating ignition and combustion propagation when a flame contacts a product. This equipment is designed in accordance with the DIN EN 60695-11-5 standard to test the fire resistance of products. The Needle Flame Testing Device evaluates how safe a product is when exposed to flames by exposing the test sample to a thin needle-shaped flame for a specified period of time. This test is primarily used to evaluate the fire resistance of electronic products such as electrical devices, wiring materials, and plastic components. As an important method for verifying flame-induced ignition and combustion propagation, it enables preemptive evaluation of product fire risks.

Key Features

Flame Shape Uses a needle flame to provide a very narrow and concentrated heat source. This enables accurate testing of the ignition potential of sensitive materials.

Fixed Duration Tests ignition resistance by bringing the needle-shaped flame into contact with the sample for 2 seconds.

Automatic Result Recording Data generated during testing is automatically recorded and can be generated as a report.

Fire Safety Evaluation Evaluates product safety by measuring how quickly ignition occurs when electrical components and materials are exposed to flames.

Ease of Use Users can conduct stable and reliable tests through automatic temperature control and a precision control system.

Test Standard	DIN EN 60695-11-5
Test Sample Size	Target product samples (prepared to specified dimensions and specifications)
Needle Flame Temperature	1000°C ~ 1300°C (flame temperature)
Test Duration	2 sec (flame contact duration)
Specimen Fixation	The specimen is secured and the flame is applied precisely to the designated contact point
Ignition Time	30 sec or less (sustained ignition duration)
Result Recording	Automatic logging in PDF and Excel formats
Temperature Accuracy	±5°C accuracy
Software Compatibility	Compatible with Windows OS; supports remote control and data logging

Software Support Specifications

- Automated Test Control Test settings configurable based on temperature, time, and material type.

- Data Recording and Analysis Automatically records all test data, including temperature, time, and material reactions.

- Report Generation Automatically generates reports after testing and saves them in PDF or Excel format.

- Automation Automated test progression, temperature and time control, with warning and notification functions.

- Compatibility Supports integration with various equipment; remote updates available.

- Security User login and role-based access management.
